What size pump do I need for a 1,000-gallon pond with a 3-foot waterfall?

The answer depends on waterfall width and plumbing. A narrow waterfall may need roughly 1,000 to 1,500 gallons per hour at the waterfall, while a 2-foot-wide full sheet may need approximately 2,000 to 3,000 gallons per hour. Choose a pump that delivers that flow at the system’s actual head, not at zero lift.

Is a 1,000-gallon-per-hour pump enough for a 1,000-gallon pond?

Not necessarily. The pump’s flow decreases as it lifts water 3 feet and pushes it through tubing, filters, and fittings. A 1,000-gallon-per-hour rating measured at zero head may provide substantially less flow in the installed system.

How much head should I allow for a 3-foot waterfall?

Use the 3-foot vertical rise as a starting point, then add losses from tubing length, bends, filters, valves, and fittings. Many short installations may have approximately 4 to 6 feet of total dynamic head, but the actual figure depends on the layout and should be checked against the pump curve.

What tubing size should I use for a pond waterfall pump?

Use the pump manufacturer’s recommended tubing size and avoid unnecessarily reducing the diameter. Long runs and narrow tubing create more friction and can noticeably reduce waterfall flow.

Can I use an oversized pump and turn it down?

Often, flow can be reduced at the outlet with an appropriate valve or built-in controller, but follow the pump manufacturer’s instructions. Never restrict the pump intake, and make sure the waterfall, filter, tubing, and electrical circuit can handle the pump’s maximum permitted flow and load.

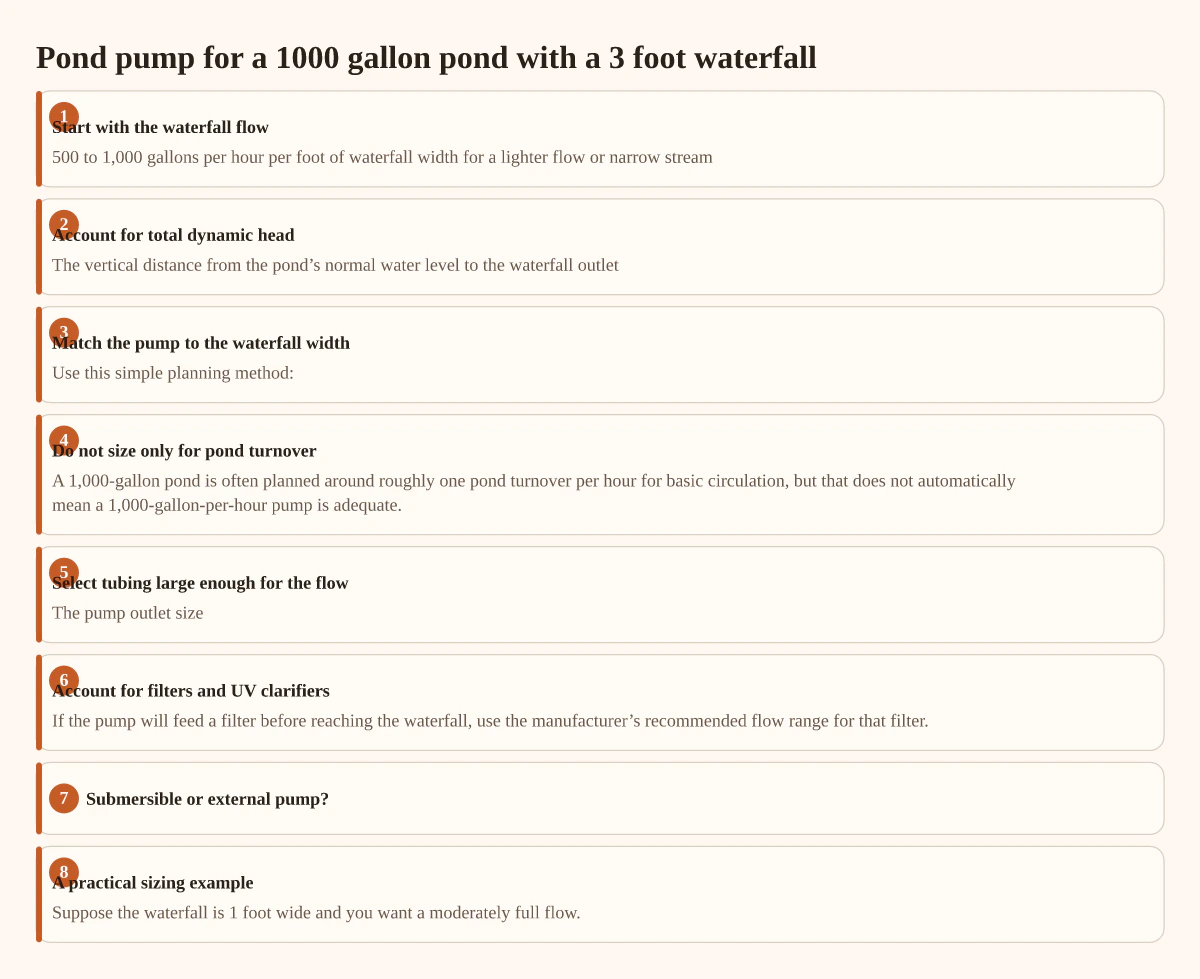

Pond pump for a 1000 gallon pond with a 3 foot waterfall

A 1,000-gallon pond with a 3-foot waterfall usually needs a pump selected by both circulation and waterfall flow. Measure the waterfall width, estimate total dynamic head, and choose a pump that delivers the required gallons per hour at that height—not its zero-head rating.

A pond pump for a 1,000-gallon pond with a 3-foot waterfall should be sized for the waterfall’s width, the plumbing run, and the pump’s actual flow at several feet of head. The pond volume alone is not enough to choose a pump. For many installations, a pump in the general range of 1,500 to 3,000 gallons per hour may be a starting point, but the correct size depends mainly on how much water you want over the waterfall and how restrictive the plumbing is.

Start with the waterfall flow

The waterfall usually determines the pump size more than the 1,000-gallon pond volume.

For a natural-looking waterfall, a common planning range is approximately:

500 to 1,000 gallons per hour per foot of waterfall width for a lighter flow or narrow stream
1,000 to 1,500 gallons per hour per foot of width for a fuller sheet of water

These are planning estimates, not universal pump specifications. A rocky, irregular waterfall may need less flow than a smooth spillway, while a wide, even sheet may need more.

For example, a waterfall that is 1 foot wide might need roughly 1,000 to 1,500 gallons per hour at the waterfall. A 2-foot-wide waterfall could require approximately 2,000 to 3,000 gallons per hour. If the waterfall is only a decorative trickle, a smaller flow may be sufficient.

Measure the width where water actually spills over the lip—not the width of the entire streambed.

Account for total dynamic head

A pump’s advertised maximum flow is normally measured at or near zero lift. Your installation will produce less flow because the pump must push water upward and through the plumbing.

For this pond, total dynamic head includes:

The vertical distance from the pond’s normal water level to the waterfall outlet
The height added by the waterfall structure and spillway
Friction from the tubing or pipe
Losses from elbows, tees, valves, filters, UV clarifiers, and check valves
Any restrictive fittings or narrow hose sections

Although the waterfall is described as 3 feet high, the pump may see more than 3 feet of total head. A practical estimate for a short, simple installation might be around 4 to 6 feet after adding tubing and fitting losses, but measure your layout and check the pump’s performance chart rather than relying on the maximum-flow number.

Choose a pump that can deliver your target flow at the estimated total head. If the manufacturer provides a pump curve, find the gallons-per-hour figure at your calculated head height. That is the useful rating for this installation.

Match the pump to the waterfall width

Use this simple planning method:

Narrow waterfall

For a waterfall around 1 foot wide, look for a pump that can provide approximately 1,000 to 1,500 gallons per hour at the installation’s actual head. A lower flow may work for a gentle stream, while a wider or more forceful sheet needs more.

Wider waterfall

For a waterfall around 2 feet wide, the target may be approximately 2,000 to 3,000 gallons per hour at the actual head. This can require a substantially higher-capacity pump at zero head because flow falls as lift and plumbing resistance increase.

Decorative trickle or stream

If the waterfall is narrow, irregular, or intended to move water gently, select the desired visual flow first. Oversizing the pump can cause splashing, erosion, excessive noise, or water loss over the edges.

If the pump is slightly oversized, a ball valve or flow-control valve can reduce flow, but throttling should follow the pump manufacturer’s instructions. Never restrict the intake, and do not run a pump outside its permitted operating conditions.

Do not size only for pond turnover

A 1,000-gallon pond is often planned around roughly one pond turnover per hour for basic circulation, but that does not automatically mean a 1,000-gallon-per-hour pump is adequate. A pump rated at 1,000 gallons per hour may deliver far less at a 3-foot lift with tubing, a filter, and fittings attached.

The waterfall requirement may also be higher than the circulation requirement. If the waterfall needs 2,000 gallons per hour at the spillway, the pump must be able to provide that flow at the complete system head. Pond volume is useful for checking circulation and filtration, but waterfall width and lift determine the pump’s working requirement.

Select tubing large enough for the flow

Tubing size affects both pump performance and operating cost. Narrow tubing creates more friction, especially over a long run or when the pump is moving several thousand gallons per hour.

When comparing pumps, check:

The pump outlet size
The recommended tubing diameter
The total length of the run
The number of elbows and fittings
Whether the tubing must pass through a filter or UV clarifier
Whether the waterfall inlet can accept the selected tubing

Avoid reducing the tubing diameter immediately after the pump unless the installation requires it. A short, properly sized run is generally easier for the pump than a long run of undersized hose. Use smooth, supported tubing where possible and avoid sharp kinks.

Account for filters and UV clarifiers

An external filter, UV clarifier, skimmer, or check valve can reduce flow. The restriction may be modest or significant depending on the component, its connection size, its condition, and the amount of debris in it.

If the pump will feed a filter before reaching the waterfall, use the manufacturer’s recommended flow range for that filter. A pump that is too large can force water through too quickly for effective filtration or exceed the component’s permitted flow. A pump that is too small may produce an underwhelming waterfall and inadequate circulation.

A bypass or separate return line can help balance filtration and waterfall flow, but the plumbing layout should be planned before buying the pump.

Submersible or external pump?

Submersible pump

A submersible pond pump sits in the pond or a pump chamber. It is often simpler to install because it does not require a primed suction line. It can be a practical choice for a small decorative pond and short waterfall run.

Check that the model is rated for continuous pond use, has the correct power supply, and can handle the intended debris level. A pre-filter or pump cage helps protect the intake from leaves, string algae, and larger debris.

External pump

An external pump sits outside the pond and can be easier to access for maintenance. It may be suitable for a larger, more permanent installation, but the suction plumbing must be correctly sized and sealed. Improper suction plumbing can cause air leaks, loss of prime, noise, or pump damage.

Follow the manufacturer’s requirements for installation, priming, ventilation, and electrical protection. Electrical connections near a pond should use appropriate ground-fault protection and weather-resistant equipment; consult a qualified electrician when in doubt.

A practical sizing example

Suppose the waterfall is 1 foot wide and you want a moderately full flow. You might begin with a target of approximately 1,000 to 1,500 gallons per hour at the waterfall.

Next, estimate the complete head. A 3-foot rise plus tubing and fitting losses might put the system somewhere around 4 to 6 feet of total head, depending on the layout. Select a pump whose performance chart shows the target flow at that head—not a pump advertised as producing the target flow at zero lift.

If the waterfall is 2 feet wide, the target flow could be approximately twice as high. In that case, a pump with a zero-head rating of only 2,000 gallons per hour may not be sufficient once lift and plumbing losses are included.

Features that matter when buying

Prioritize these specifications:

Flow at your operating head: The most important number for this installation
Maximum head: Useful for comparison, but it does not tell you the flow at your 3-foot waterfall
Continuous-duty rating: Important when the pump will run all day and night
Power consumption: A more efficient pump can reduce ongoing operating cost
Outlet and tubing compatibility: Avoid unnecessary reducers and restrictive fittings
Debris handling and intake protection: Important for an open pond
Flow adjustment: Helpful when the waterfall needs fine-tuning
Warranty and replacement parts: Useful for a component that may run continuously

Do not choose a pump based only on the highest gallons-per-hour number in the listing. Compare its performance curve with the head and plumbing in your installation.

Installation checks before switching on the pump

Confirm the pump is rated for continuous operation in a pond or water feature.
Place a submersible pump on a stable support so it does not sit directly in sludge.
Protect the intake with the recommended screen, pre-filter, or pump cage.
Use tubing that matches the pump outlet as closely as practical.
Route the tubing without kinks or sharp bends.
Make sure the waterfall basin and liner can contain the flow without spilling at the sides.
Fill the system and verify that the pond water level remains high enough to cover the pump intake.
Use a properly protected outdoor electrical connection and follow local electrical requirements.
Start the pump while watching the pond level, waterfall edges, and return path.
Adjust the flow only at the outlet or with an approved flow-control method.

If the waterfall flow is weaker than expected

Check the causes in this order:

Clean the filter and intake

A clogged pump screen, pre-filter, skimmer basket, or pond filter can reduce flow quickly. Turn off and disconnect power before removing or cleaning any pump component. Rinse filter media according to the filter manufacturer’s instructions; untreated tap water can harm beneficial bacteria in biological media.

Inspect the tubing

Look for kinks, crushed sections, algae buildup, and debris at the pump outlet or waterfall inlet. Confirm that a smaller hose section or restrictive adapter has not been installed in the line.

Check for leaks and air entry

Water escaping from a fitting reduces the amount reaching the waterfall. On an external-pump system, air entering the suction side can also reduce performance and cause noise or loss of prime.

Verify the setup and water level

Make sure the pump is fully submerged if it is a submersible model, the intake is not sitting in sludge, and valves are open. Confirm that the waterfall box or spillway is level and not allowing water to escape behind the liner.

Check for excessive head

A longer hose run, extra elbows, a clogged component, or a waterfall outlet higher than planned can reduce flow. Compare the actual layout with the pump’s performance chart.

Consider pump wear or electrical problems

If cleaning and plumbing checks do not help, the impeller may be worn or obstructed, or the pump may have an electrical fault. Disconnect power before inspection. Do not open or repair electrical components unless the manufacturer permits it and you are qualified to do so.

A replacement pump is reasonable when the motor is noisy, repeatedly trips protection, overheats, has a damaged cord, or cannot produce the required flow after the plumbing and filtration system are confirmed clear. Replace damaged electrical equipment rather than continuing to operate it near water.

Bottom line

For a 1,000-gallon pond with a 3-foot waterfall, begin with the waterfall width and desired visual flow, then select a pump based on its gallons-per-hour output at the complete system head. A narrow, gentle waterfall may work with a smaller pump, while a 2-foot-wide full sheet may require several thousand gallons per hour at the waterfall. Use adequately sized tubing, account for filters and fittings, and choose a continuous-duty pump with a published performance curve.
